The ideal laminate pouch thickness depends on how often the document will be handled, the level of rigidity required, and the maximum thickness your laminating machine can support. Pouch thickness is measured in microns (µm), typically ranging from light-duty 75 or 80 microns to heavy-duty 150 or 250 microns per side. Selecting the right thickness ensures your documents remain protected from moisture, dirt, and wear without jamming your laminator or wasting resources.
To make the right choice, you must balance the physical demands placed on the document with the technical capabilities of your laminating equipment. Using a pouch that is too thin may leave a high-use document prone to creasing, while a pouch that is too thick can exceed your machine’s heating capacity, resulting in a cloudy, incomplete seal.
Understanding Laminate Pouch Thickness Measurements
Laminate pouches are measured in microns, with one micron representing one-thousandth of a millimeter. On stationery packaging, this measurement is often abbreviated as “µm” or simply referred to as “mic.” The micron rating directly correlates with the physical rigidity and protective strength of the finished, laminated document.
Products mentioned in this guide

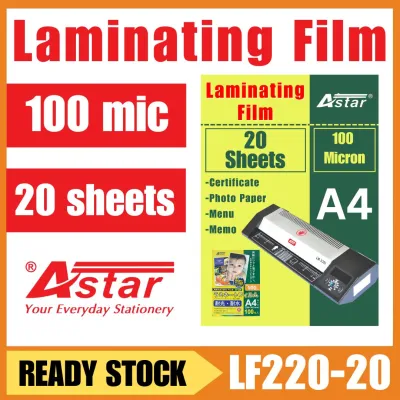

![[Ready Stock] 20sheets laminating pouch / Value pack laminating film / x20 sheets Astar Laminating Film 100mic Laminate Pouches Film A4 Size](https://img.lazcdn.com/g/p/e043ff7468097c8f07d306ee8f78cb6f.jpg_400x400q80.jpg_.webp)
![[✅SG Ready Stock]Laminating Pouch A4 Size Laminate Sheet 100PCS 100 Micron Laminating Film For Laminator Machine 塑封膜](https://img.lazcdn.com/g/p/b43d141aaba4b96660a1a587efd2c8dc.jpg_400x400q80.jpg_.webp)
Prices are valid at publication and may change. Please refer to the product page for the latest price.
When shopping for supplies, it is crucial to distinguish between “per side” and “total” thickness labels. Most office stationery brands label their pouches by the thickness of a single side. For example, a pouch labeled as 80 microns actually consists of two sheets of 80-micron film joined at one sealed edge, creating a total plastic thickness of 160 microns around your paper. Always check the packaging details to confirm whether the listed value is per side (sometimes written as 2×80 µm) or represents the combined total.
Your choice of thickness determines the final flexibility of the laminated item. Thinner pouches, such as 75 to 80 microns, retain a degree of flexibility, allowing the document to bend slightly without creasing. Thicker options, such as 125 microns and above, provide a rigid, plastic-card-like feel that resists bending entirely and keeps the document flat.
Matching Thickness to Document Types and Usage
Selecting the right pouch thickness requires analyzing how the document will be handled, where it will be displayed, and how long it needs to last. Matching these factors to the correct micron level prevents unnecessary spending on overly thick pouches while ensuring adequate protection.
Light-duty applications (75 to 80 microns) are best suited for temporary notices, classroom worksheets, or items that need to be folded or rolled. These pouches offer basic protection against dust, fingerprints, and light spills while keeping the document lightweight and flexible. They are highly cost-effective for high-volume, low-wear office tasks where long-term durability is not a priority.
Standard daily use (100 to 125 microns) is ideal for certificates, photos, reference sheets, and instructional guides. This thickness strikes an excellent balance between durability and handling. It provides a professional, semi-rigid feel that protects against frequent handling and the humid tropical climate of Singapore, which can otherwise cause unprotected paper to warp, soften, or absorb moisture over time.
Heavy-duty or high-frequency use (150 to 250 microns) is recommended for menus, ID cards, outdoor signage, and frequently referenced checklists. These thick pouches offer maximum rigidity and crease resistance. They create a sturdy, durable barrier that can withstand heavy daily handling, regular wiping down with damp cloths, and exposure to harsher environments without degrading.
Checking Laminator Compatibility and Settings
Before purchasing thick laminate pouches, you must verify that your laminating machine can safely process them. Feeding an incompatible pouch through your machine can lead to permanent equipment damage or ruined documents.
Always check your laminator’s maximum supported thickness limit in the manufacturer’s user manual. Entry-level home or office laminators often only support up to 100 or 125 microns. Attempting to feed a 150 or 250-micron pouch through a low-capacity machine can cause severe jams, as the rollers may not be spaced widely enough to accommodate the thickness, and the motor may strain under the resistance.
Adjust your laminator’s temperature and speed settings according to the selected pouch thickness and the underlying paper weight. Thicker pouches require more heat and slower pass-through speeds to melt the internal adhesive completely. If your laminator has adjustable settings, select the setting that matches your pouch thickness. If you are laminating thick cardstock instead of standard copy paper, you may need to use a slightly higher heat setting or run the document through a second time to ensure a complete seal.
Watch for signs of poor lamination to troubleshoot issues immediately. A cloudy or milky appearance indicates the laminator was not hot enough to melt the adhesive fully; running it through again or increasing the heat can resolve this. Conversely, warping, bubbling, or a burning smell indicates excessive heat. If a pouch begins to wrap around the internal rollers or jams midway, immediately press the release lever or turn off the power to prevent permanent damage to the heating elements.
Practical Preparation and Testing Steps
To avoid ruining important or irreplaceable documents, always perform a few quick preparation steps and tests before starting your laminating project.
Always perform a test run using a scrap piece of paper of the same weight inside a spare pouch before laminating irreplaceable documents or certificates. This allows you to verify that the temperature and speed settings are correct and that the adhesive cures clearly. It also helps you identify any potential machine issues before they affect your actual document.
Ensure there is a border of at least 3 to 5 millimeters of laminate film around all edges of your document. Cutting the laminate flush with the paper edge exposes the paper fibers to moisture, leading to peeling and water damage over time. A proper seal margin guarantees that the plastic sheets fuse directly to each other, locking out air and moisture.
Note material restrictions before laminating. Avoid laminating heat-sensitive materials such as thermal paper receipts, ultrasound scans, or certain types of wet, freshly printed inkjet documents. The high heat of the laminator can turn thermal paper completely black or cause wet inks to smear and bleed inside the pouch. Ensure all inks are completely dry before placing the document in the pouch.
Frequently Asked Questions (FAQ)
Can I use a thicker pouch than my laminator's maximum rating?
No, you should never exceed your laminator’s maximum rated thickness. Doing so risks jamming the pouch inside the rollers, straining the motor, or damaging the heating elements. If the pouch is too thick, the machine will also fail to deliver enough heat to melt the adhesive, resulting in a cloudy, unsealed document.
Does a thicker pouch make the document completely waterproof?
A thicker pouch provides a more robust barrier against moisture, but waterproof performance depends entirely on the edge seal rather than the thickness of the plastic. To ensure water resistance, you must leave a continuous, uncut border of laminate film around the entire perimeter of the paper. If you cut through the sealed edge to trim the document, water can seep into the paper fibers and ruin the document.
